Model 10 Both End Extended Tie Rod Mount (ISO MX1)
These mounts are for straight line force transfer applications. Both ends extended tie rod mounts are suited for tension and compression applications or applications where additional hardware is to be attached to cylinders.The mounting surface should be flat and the frame on which the cylinder is mounted must be sufficiently rigid to resist bending moments.The force on the rod should be perpendicular to the mounting surface and coincide with the centerline of the piston rod. For eccentric loads, the larger of the two available rods in each bore size is recommended. Stop tubes should also be considered.

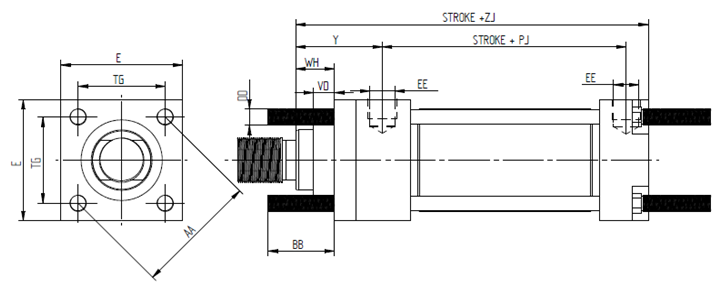

| Bore | AA | BB | DD | E | EE BSP | TG | WH | VD | Y | Stroke+ | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZJ | ||||||||||
| 25 | 40 | 19 | M5 x 0.8 | 40 | 1/4" | 28.3 | 15 | 5 | 50 | 53 | 114 |
| 32 | 47 | 24 | M6 x 1 | 45 | 1/4" | 33.2 | 25 | 5 | 60 | 56 | 128 |
| 40 | 59 | 35 | M8 x 1 | 63 | 3/8" | 41.7 | 25 | 5 | 62 | 73 | 153 |
| 50 | 74 | 46 | M12 x 1.25 | 75 | 1/2" | 52.3 | 25 | 5 | 67 | 74 | 159 |
| 63 | 91 | 46 | M12 x 1.25 | 90 | 1/2" | 64.3 | 32 | 5 | 71 | 80 | 168 |
| 80 | 117 | 59 | M16 x 1.5 | 115 | 3/4" | 82.7 | 31 | 5 | 77 | 93 | 190 |
| 100 | 137 | 59 | M16 x 1.5 | 130 | 3/4" | 96.9 | 35 | 5 | 82 | 101 | 203 |
| 125 | 178 | 81 | M22 x 1.5 | 165 | 1" | 125.9 | 35 | 5 | 86 | 117 | 232 |
| 160 | 219 | 92 | M27 x 2 | 205 | 1" | 154.9 | 32 | 5 | 86 | 130 | 245 |
| 200 | 269 | 115 | M30 x 2 | 245 | 1-1/4" | 190.2 | 32 | 5 | 98 | 165 | 299 |
